KJ&C, the company that produces the convenient products in the harmony with nature

Quick Clip Wood Block Design Fence Sealant COCONOID

Quick Clip A Type

EZWOODQuick Clip

If Quick Clip is used, the construction is fast,
anyone can easily install and it is cost-efficient.

  • Installation is faster 3 times than general deck
  • Convenient repair and maintenance
  • Comfortable sense of walk due to having special
    vibration-proof rubber
  • Safe and neat due to not exposing the nail
  • Eco-friendly product
  • Long-term warrantee is possible due to excellent durability

in consideration of the environment
In pursuit of convenience and simplicity
It's an economical deck module

What is Quick Clip? (A Type)

Generally, when installing the lumber deck material, if the construction is made using fixing materials such as nail, screw, etc. it is rigid and stable but since the nail, screw and screw head are exposed, it is not good aesthetically and there is concern over safety accident. In addition, its disadvantage is that the repair is not easy and the construction time is long. There is clip construction without exposing the nail, screw, screw head, etc. by improving the general deck construction but repair is difficult when the defect may be found and the installation time is long and the cost is high. Quick Clip is the module for deck developed by maximizing the advantage of clip construction and complementing the disadvantages.

Advantage of Quick Clip A Type

  • Quick

    Quick Clip A Type of EZWOOD is faster
    more than 3 times compared to
    general deck construction.

  • Easy

    Quick Clip A Typeof EZWOOD can be
    installed easy by anyone.

  • Economical

    Quick Clip A Type of EZWOOD reduces
    the construction cost.

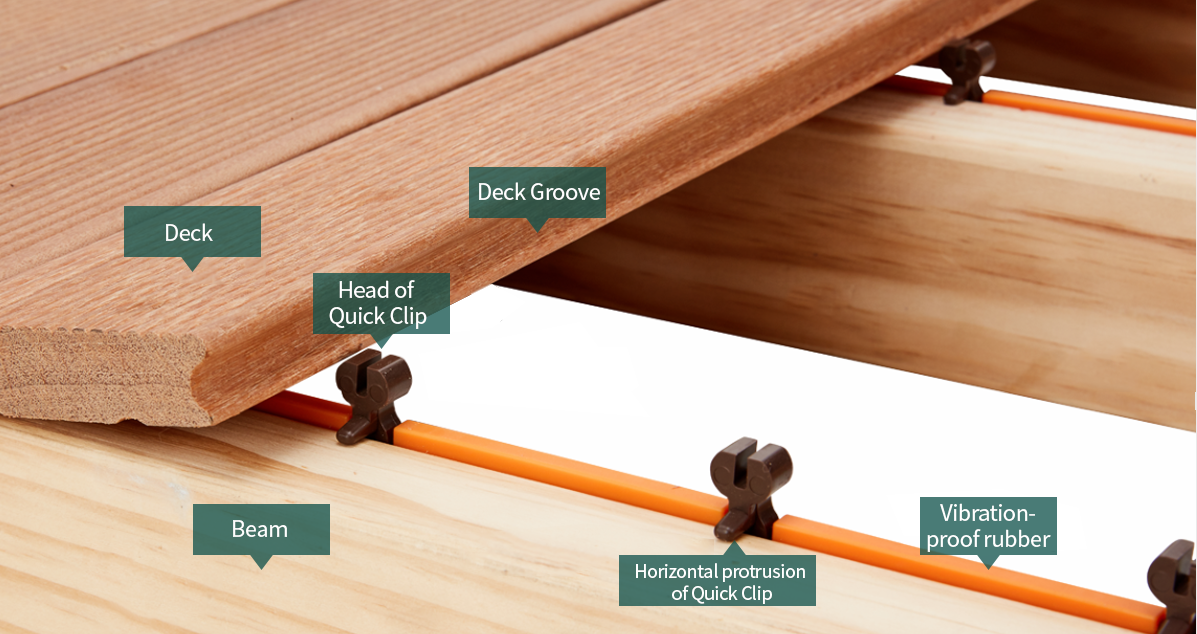

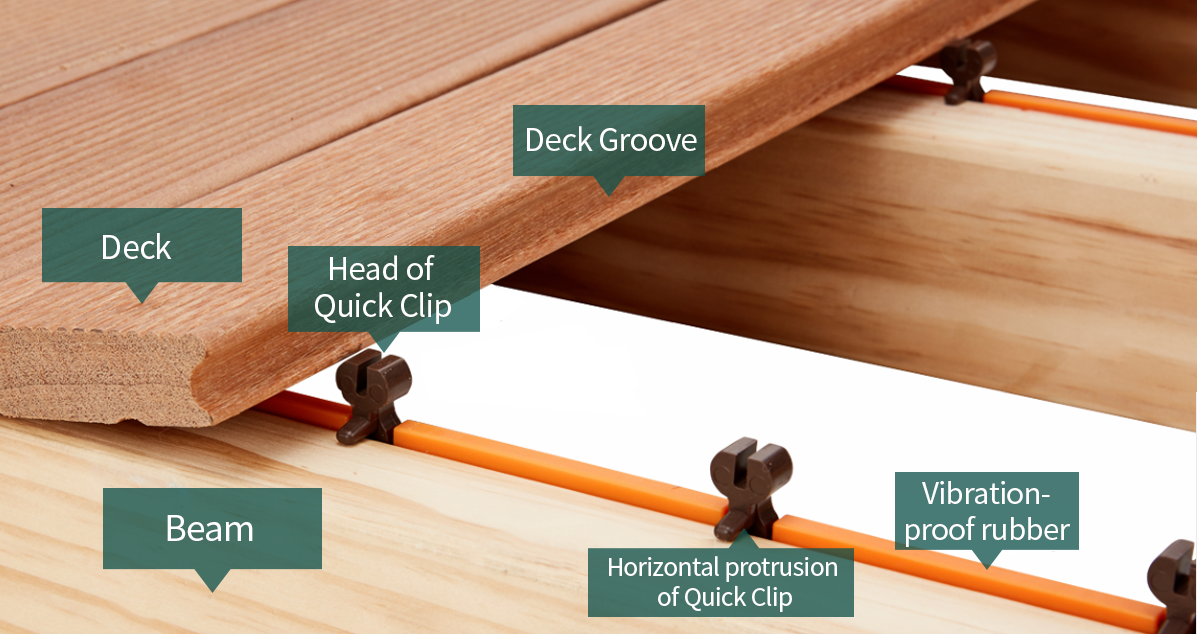

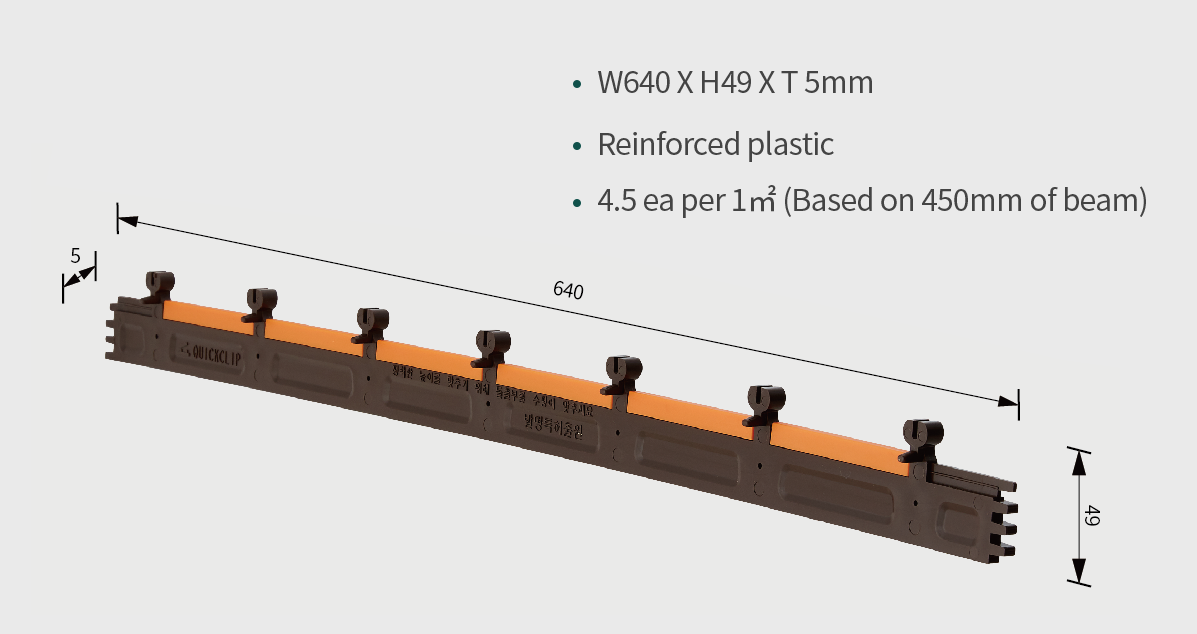

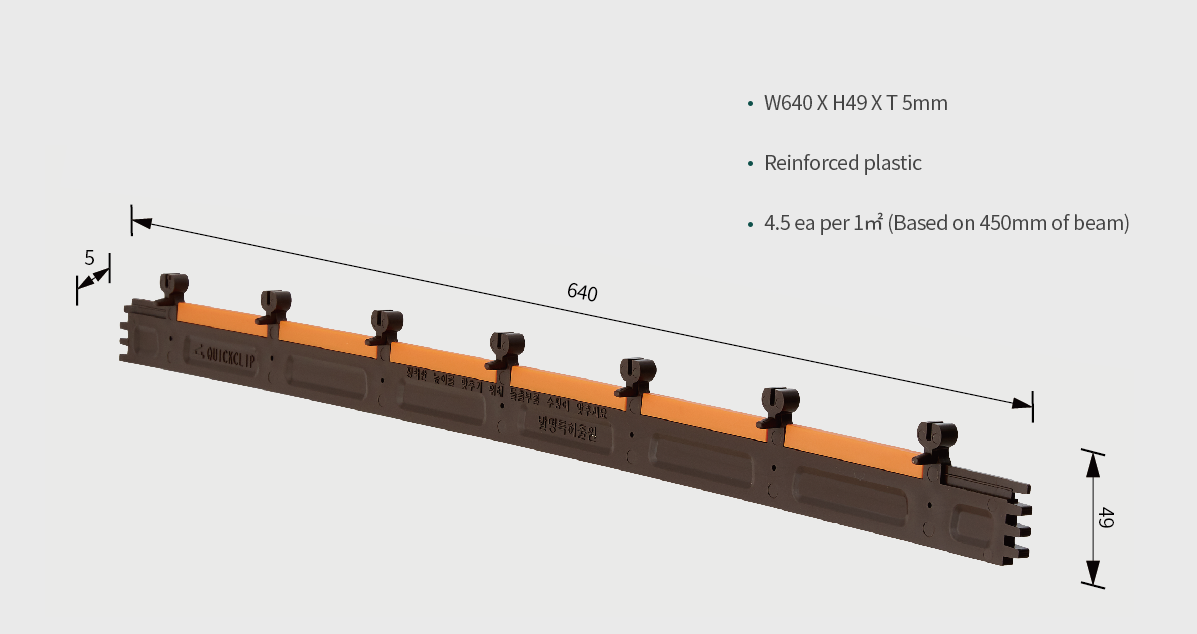

Material and Dimension of Quick Clip A Type

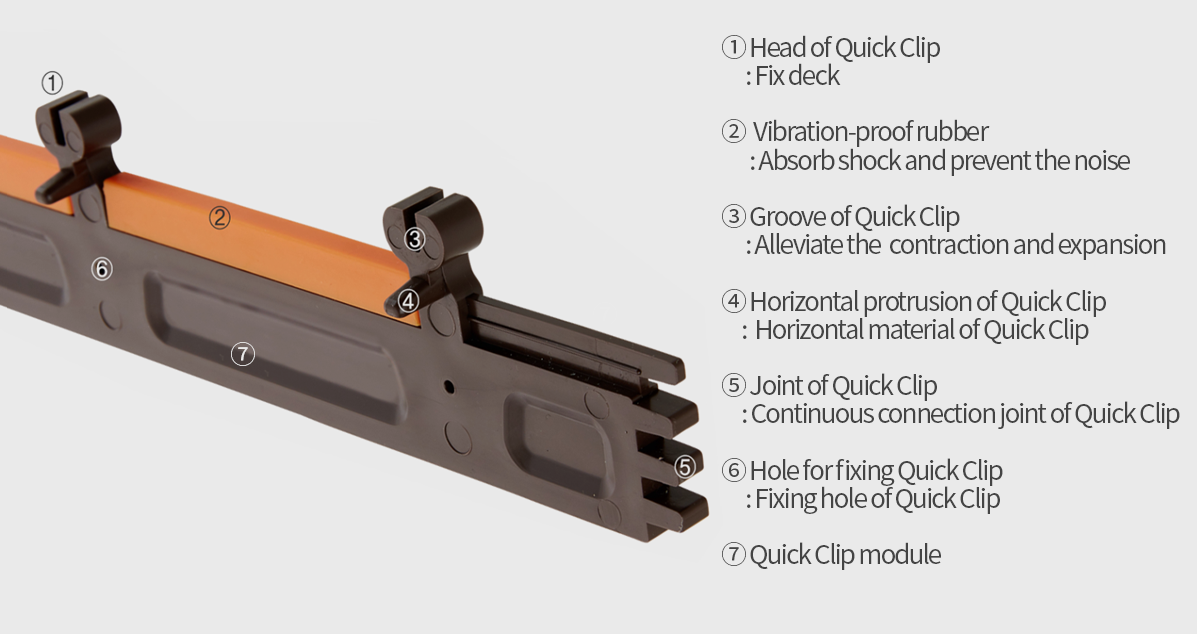

Name of Function of Quick Clip A Type

How to Install Quick Clip A Type

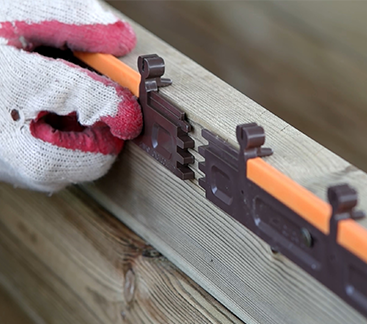

  1. 1

    Attach Quick Clip to lumber.

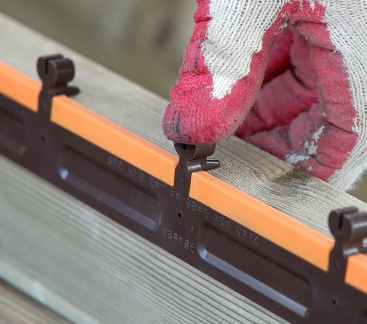

  2. 2

    Level Quick Clip by pushing the horizontal protrusion of Quick Clip in order to be leveled with the lumber.

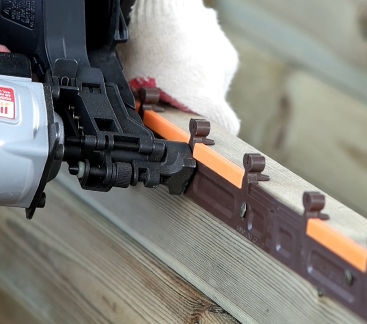

  3. 3

    Fix Quick Clip to the lumber (beam).

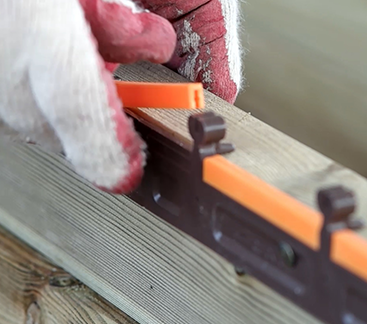

  4. 4

    After fixing the Quick Clip by interlocking the continuous joint of Quick Clip, attach the vibration-proof rubber.

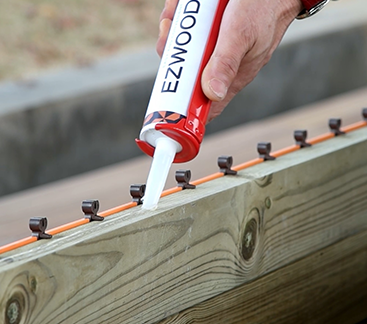

  5. 5

    Apply the dedicated adhesive (sealant) at the top of the beam.

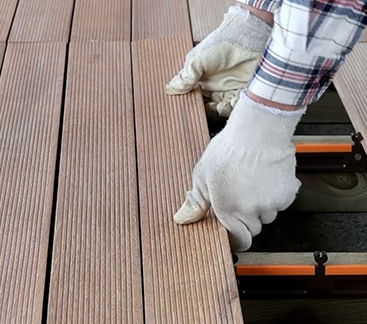

  6. 6

    Fix the deck by pressing from the top after attaching the deck to the head of Quick Clip obliquely.

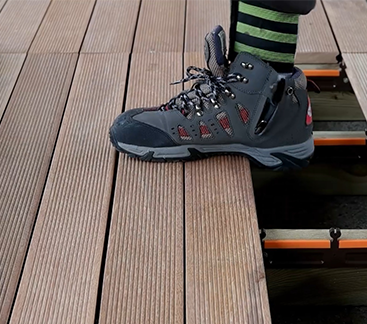

  7. 7

    Fix the deck to Quick Clip by treading on or pressing the deck.

Specification

Division Durability Material Environmental Product usage Environment Usage Price Remarks
Body Rubber Clip Inside Outside -60°C or less
A Type ★★★★☆ PP TPE PP ECO ● ●   For walking Contact
B Type ★★★★★ PP TPE ST ECO ● ● ● For walking Contact



Quick Clip Video A Type

If Quick Clip is used, the construction is fast, anyone can easily install and it is cost-efficient
